How to execute a program inside .Net Framework

Introduction to .net Framework

.NET Framework generally consists of an environment for the development and execution of programs, written in C# or some other language, compatible with .NET (like VB.NET, Managed C++, J# or F#).


Microsoft started development of .NET Framework in the late 1990s, originally under the name of Next Generation Windows Services (NGWS). By late 2000, the first beta versions of .NET 1.0 were released.
.NET Framework family also includes two versions for mobile or embedded device use. A reduced version of the framework, .NET Compact Framework, is available on Windows CE platforms, including Windows Mobile devices such as smartphones. Additionally, .NET Micro Framework is targeted at severely resource-constrained devices.

Overview of .NET Framework release history


.NET Framework (pronounced dot net) is a software framework developed by Microsoft that runs primarily on Microsoft Windows. It includes a large class library known as Framework Class Library (FCL) and provides language interoperability (each language can use code written in other languages) across several programming languages. Programs written for .NET Framework execute in a software environment (as contrasted to hardware environment), known as Common Language Runtime (CLR), and an application virtual machine that provides services such as security, memory management, and exception handling. FCL and CLR together constitute .NET Framework

Architecture of .Net Framework

Instated of learning architecture of .Net Framework we will learn how execute a program inside .Net Framework, then automatically you will know the architecture of .Net Framework.

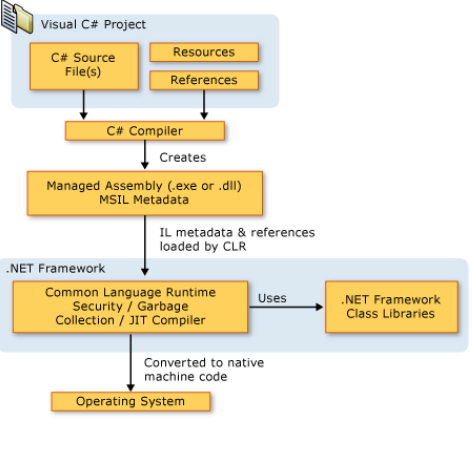

Process of executing .Net Program in .Net Framework

1.        Programming Language

2.      Compiler
2.1    MSIL
2.3 portable executable (PE)
2.4Managed Code

3.       Common Language Runtime(CLR)

4.      Compiling MSIL to Native Code
4.1   A .NET Framework just-in-time (JIT) compiler
4.2  The .NET Framework Native Image Generator (Ngen.exe)
4.3  Code Verification

Managed Execution Process

6.      Executing an Instruction

7.      Other Component
7.1   .NET Framework Base Class Library
7.2  Common Type System

Relationship to the Common Type System and the Common Language Specification

1] Programming Language:

For the .Net programming we need Visual Studio IDE. We will not learn Visual Studio but History of Visual Studio.

2] Compiler:

Each language has its own compiler which is use for converting high level language (Human readable) to Microsoft Intermediate Language (MSIL or IL or Managed Code).

    I]    MSIL:

     When compiling to managed code, the compiler translates your source code into Microsoft intermediate language (MSIL), which is a CPU-independent set of instructions that can be efficiently converted to native code. MSIL includes instructions for loading, storing, initializing, and calling methods on objects, as well as instructions for arithmetic and logical operations, control flow, direct memory access, exception handling, and other operations. Before code can be run, MSIL must be converted to CPU-specific code, usually by a just-in-time (JIT) compiler. Because the common language runtime supplies one or more JIT compilers for each computer architecture it supports, the same set of MSIL can be JIT-compiled and run on any supported architecture.
When a compiler produces MSIL, it also produces metadata. Metadata describes the types in your code, including the definition of each type, the signatures of each type's members, the members that you’re code references, and other data that the runtime uses at execution time. The MSIL and metadata are contained in a portable executable (PE) file that is based on and extends the published Microsoft PE and common object file format (COFF) used historically for executable content. This file format, which accommodates MSIL or native code as well as metadata, enables the operating system to recognize common language runtime images. The presence of metadata in the file along with the MSIL enables your code to describe itself, which means that there is no need for type libraries or Interface Definition Language (IDL). The runtime locates and extracts the metadata from the file as needed during execution.

II)                  Meta Data:

Metadata is binary information describing your program that is stored either in a common language runtime portable executable (PE) file or in memory. When you compile your code into a PE file, metadata is inserted into one portion of the file, while your code is converted to Microsoft intermediate language (MSIL) and inserted into another portion of the file. Every type and member defined and referenced in a module or assembly is described within metadata. When code is executed, the runtime loads metadata into memory and references it to discover information about your code's classes, members, inheritance, and so on.
Metadata describes every type and member defined in your code in a language-neutral manner. Metadata stores the following information:
  •         Description of the assembly.

o   Identity (name, version, culture, public key).
o   The types that are exported.
o   Other assemblies that this assembly depends on.
o   Security permissions needed to run.
  •         Description of types.

o   Name, visibility, base class, and interfaces implemented.
o   Members (methods, fields, properties, events, nested types).
  •        Attributes.

o   Additional descriptive elements that modify types and members.

III)                  portable executable(PE):

The file format defining the structure that all executable files (EXE) and Dynamic Link Libraries (DLL) must use to allow them to be loaded and executed by Windows. PE is derived from the Microsoft Common Object File Format (COFF). The EXE and DLL files created using the .NET Framework obey the PE/COFF formats and also add additional header and data sections to the files that are only used by the CLR.
                 Format of .Net PE file

IV) Managed vs Unmanaged Code:
                   Manage Code:
Managed code is code that is written to target the services of the managed runtime execution environment (like Common Language Runtime in .NET Framework). The managed code is always executed by a managed runtime execution environment rather than the operating system directly. Managed refers to a method of exchanging information between the program and the runtime environment. Because the execution of code is governed by the runtime environment, the environment can guarantee what the code is going to do and provide the necessary security checks before executing any piece of code.
  In .NET Framework Managed Code runs within the .Net Framework’s     CLR and benefits from the services provided by the CLR. When we     compile the managed code, the code gets compiled to an               intermediate language (MSIL) and an executable is created.
  Managed code also called as MSIL or IL.

          Unmanaged Code:

Code that is directly executed by the Operating System is known as unmanaged code. Typically applications written in VB 6.0, C++, C, etc are all examples of unmanaged code. Unmanaged code typically targets the processor architecture and is always dependent on the computer architecture. Unmanaged code is always compiled to target a specific architecture and will only run on the intended platform. This means that if you want to run the same code on different architecture then you will have to recompile the code using that particular architecture. Unmanaged code is always compiled to the native code which is architecture specific. When we compile unmanaged code it gets compiled into a binary X86 image. And this image always depends on the platform on which the code was compiled and cannot be executed on the other platforms that are different that the one on which the code was compiled. Unmanaged code does not get any services from the managed execution environment. In unmanaged code the memory allocation, type safety, security, etc. needs to be taken care of by the developer.

3] Common Language Runtime (CLR):

    The Common Language Runtime (CLR) is an Execution Environment. It works as a layer between Operating Systems and the applications written in .Net languages that conforms to the Common Language Specification (CLS). The main function of Common Language Runtime (CLR) is to convert the Managed Code into native code and then execute the Program.

The Managed Code compiled only when it needed, that is it converts the appropriate instructions when each function is called. The Common Language Runtime (CLR)’s Just In Time (JIT) compilation converts Intermediate Language (MSIL) to native code on demand at application run time.
During the execution of the program, the Common Language Runtime (CLR) manages memory, Thread execution, Garbage Collection (GC), Exception Handling, Common Type System (CTS), code safety verifications, and other system services. The CLR (Common Language Runtime) defines the Common Type System (CTS), which is a standard type system used by all .Net languages. That means all .NET programming languages uses the same representation for common Data Types, so Common Language Runtime (CLR) is a language-independent runtime environment. The Common Language Runtime (CLR) environment is also referred to as a managed environment, because during the execution of a program it also controls the interaction with the Operating System.

4] Compiling MSIL to Native Code:

Before you can run Microsoft intermediate language (MSIL), it must be compiled against the common language runtime to native code for the target machine architecture. The .NET Framework provides two ways to perform this conversion:
  •          A .NET Framework just-in-time (JIT) compiler.
  •          The .NET Framework Native Image Generator (Ngen.exe)
  •         Code Verification

I)                  A .NET Framework just-in-time (JIT) compiler:

·         JIT compilation converts MSIL to native code on demand at application run time, when the contents of an assembly are loaded and executed. Because the common language runtime supplies a JIT compiler for each supported CPU architecture, developers can build a set of MSIL assemblies that can be JIT-compiled and run on different computers with different machine architectures. However, your managed code will run only on a specific operating system if it calls platform-specific native APIs, or a platform-specific class library.

·         JIT compilation takes into account the fact that some code might never get called during execution. Rather than using time and memory to convert all the MSIL in a portable executable (PE) file to native code, it converts the MSIL as needed during execution and stores the resulting native code in memory so that it is accessible for subsequent calls in the context of that process. The loader creates and attaches a stub to each method in a type when the type is loaded and initialized. When a method is called for the first time, the stub passes control to the JIT compiler, which converts the MSIL for that method into native code and modifies the stub to point directly to the generated native code. Subsequent calls to the JIT-compiled method therefore proceed directly to the native code.

Different Types of JIT :

  1] Normal JIT :
   This complies only that part of code which called at runtime. That code are compiled only first time when they are called, and then they are stored in memory cache. This memory cache is commonly called as JITTED. When the same methods are called again, the complied code from cache is used for execution.

      2] Econo JIT :
         This complies only methods that are called at run-time and removes them from memory after execution.

     3] Pre JIT :
           This complies entire MSIL code into native code in a single compilation cycle. This is done at the time of deployment of the application.

II)  The .NET Framework Native Image Generator (Ngen.exe):

Because the JIT compiler converts an assembly's MSIL to native code when individual methods defined in that assembly are called, it necessarily involves a performance hit at run time. In most cases, that performance hit is acceptable. More importantly, the code generated by the JIT compiler is bound to the process that triggered the compilation. It cannot be shared across multiple processes. To allow the generated code to be shared across multiple invocations of an application or across multiple processes that share a set of assemblies, the common language runtime supports an ahead-of-time compilation mode. This ahead-of-time compilation mode uses the Native Image Generator (Ngen.exe) to convert MSIL assemblies to native code much like the JIT compiler does. However, the operation of Ngen.exe differs from that of the JIT compiler in three ways:
  •          It performs the conversion from MSIL to native code         before rather than while running the application.
  • ·        It compiles an entire assembly at a time, rather than a      method at a time.
  •          It persists the generated code in the Native Image Cache      as a file on disk.

III)            Code Verification :

As part of compiling MSIL to native code, the MSIL code must pass a verification process unless an administrator has established a security policy that allows the code to bypass verification. Verification examines MSIL and metadata to find out whether the code is type safe, which means that it only accesses the memory locations it is authorized to access. Type safety helps isolate objects from each other and therefore helps protect them from inadvertent or malicious corruption. It also provides assurance that security restrictions on code can be reliably enforced.
The runtime relies on the fact that the following statements are true for code that is verifiably type safe:
  •          A reference to a type is strictly compatible with the type being referenced.
  •          Only appropriately defined operations are invoked on an object.
  •          Identities are what they claim to be.

During the verification process, MSIL code is examined in an attempt to confirm that the code can access memory locations and call methods only through properly defined types. For example, code cannot allow an object's fields to be accessed in a manner that allows memory locations to be overrun. Additionally, verification inspects code to determine whether the MSIL has been correctly generated, because incorrect MSIL can lead to a violation of the type safety rules. The verification process passes a well-defined set of type-safe code, and it passes only code that is type safe. However, some type-safe code might not pass verification because of some limitations of the verification process, and some languages, by design, do not produce verifiably type-safe code. If type-safe code is required by the security policy but the code does not pass verification, an exception is thrown when the code is run.

5] Managed Execution Process

Managed code is self-explanatory code which gives information to CLR for multiple runtime services in .NET Framework.
This information is stored in MSIL code in the form of metadata inside the PE file. Mata data information will describe the types that the code contains.
Managed data is allocated and released from memory automatically by garbage collection. Managed data can be accessible form managed code but managed code can be accessible from managed and unmanaged data.

Memory Management

Automatic memory management means no need to write code to allocate memory when objects are created or to release memory when objects are not required the application.
The process of automatic memory management involves the following tasks:

1] Allocating memory

When a process is initialized, the runtime reserves a contiguous address space without allocating any storage space for it. This reserved address space is called a managed heap. The managed heap keeps a pointer at the location where the next object will be located. When an application uses the new operator to create an object, the new operator checks whether the memory required by the object is available on the heap.
When the next object is created, the garbage collector allocates memory to the object on the managed heap, Allocating memory to the objects in a managed heap takes less time than allocating unmanaged memory. In unmanaged memory, the pointers to memory are maintained in linked-list data structures. Therefore, allocating memory requires navigating through the linked list, finding a large memory block to accommodate the
You can access objects in managed memory faster than objects in unmanaged memory because in managed memory allocation, objects are created contiguously in the managed address space.

2] Releasing Memory

The garbage collector periodically releases memory from the objects that are no longer required by the application.
Every application has a set of roots. Roots point to the storage location on the managed heap. Each root either refers to an object on the managed heap or is set to null. An application's roots consist of global and static object pointers, local variables, and reference object parameters on a thread stack. The JIT compiler and the run-time maintain the list of the application roots. The garbage collector uses this list to create a graph of objects on the managed heap that are reachable from the root list.
When the garbage collector starts running, it considers all the objects on the managed heap as garbage. The garbage collector navigates through the application root list, it identifies the objects that have corresponding references in the application root list and marks them as reachable. The garbage collector also considers such objects as reachable objects. The garbage collector considers all unreachable objects on the managed heap as garbage.
The garbage collector performs a collection process to free the memory occupied by the garbage objects. The garbage collector performs the memory copy function to compress the objects in the managed heap. The garbage collector updates the pointers in the application root list so that the application roots correctly point to the objects to which they were pointing earlier. The garbage collector uses a highly optimized mechanism to perform garbage collection. It divides the objects on the managed heap into three generations: 0, 1, and 2. Generation 0 contains recently created objects. The garbage collector first collects the unreachable objects in generation 0. Next, the garbage collector compacts memory and promotes the reachable objects to generation 1. The objects that survive the collection process are promoted to higher generations.
The garbage collector searches for unreachable objects in generations 1 and 2 only when the memory released by the collection process of generation 0 objects is insufficient to create the new object. The garbage collector manages memory for all managed objects created by the application. The garbage collection can explicitly release these system resources by providing the cleanup code in the Dispose method of the object. We need to explicitly call the Dispose method after you finish working with the object.

3]Implementing Finalizers

The finalization process allows an object to perform cleanup tasks automatically before garbage collection starts.
The Finalize method ensures that even if the client does not call the Dispose method explicitly, the resources used by the object are released from memory when the object is garbage collected. After the garbage collector identifies the object as garbage during garbage collection, it calls the Finalize method on the object before releasing memory. Finalizers are the methods that contain the cleanup code that is executed before the object is garbage collected. The process of executing cleanup code is called finalization. The Dispose and Finalizemethods are called finalizers.
The Dispose method of an object should release all its resources in addition to the resources owned by its parent object by calling the Dispose method of the parent object.
We can execute the Dispose method in two ways.
  • The user of the class can call the Dispose method on the object that is being disposed, or
  • The Finalize method can call the Dispose method during the finalization process.

6] Executing an Instruction:

            Finally OS take instructions form CLR and give to processor and processor execute it and give the result.

7] Other Component:

1.       .NET Framework Base Class Library

The .NET Framework class library is a library of classes, interfaces, and value types that provide access to system functionality. It is the foundation on which .NET Framework applications, components, and controls are built. The namespaces and namespace categories in the class library are listed in the following table and documented in detail in this reference. The namespaces and categories are listed by usage, with the most frequently used namespaces appearing first.

2.       Common Type System

In Microsoft's .NET Framework, the Common Type System (CTS) is a standard that specifies how type definitions and specific values of types are represented in computer memory. It is intended to allow programs written in different programming languages to easily share information. As used in programming languages, a type can be described as a definition of a set of values (for example, "all integers between 0 and 10"), and the allowable operations on those values (for example, addition and subtraction).
The common type system defines how types are declared, used, and managed in the common language runtime, and is also an important part of the runtime's support for cross-language integration.
The specification for the CTS is contained in Ecma standard 335, "Common Language Infrastructure (CLI) Partitions I to VI." The CLI and the CTS were created by Microsoft, and the Microsoft .NET framework is an implementation of the standard.

Classification of Types:

The common type system supports two general categories of types, each of which is further divided into subcategories:

v  Value types :

Value types directly contain their data, and instances of value types are either allocated on the stack or allocated inline in a structure. Value types can be built-in (implemented by the runtime), user-defined, or enumerations. For a list of built-in value types, see the .NET Framework Class Library.

v  Reference types :

Reference types store a reference to the value's memory address, and are allocated on the heap. Reference types can be self-describing types, pointer types, or interface types. The type of a reference type can be determined from values of self-describing types. Self-describing types are further split into arrays and class types. The class types are user-defined classes, boxed value types, and delegates.
Variables that are value types each have their own copy of the data, and therefore operations on one variable do not affect other variables. Variables that are reference types can refer to the same object; therefore, operations on one variable can affect the same object referred to by another variable.
All types derive from the System. Object base type.

3.       Relationship to the Common Type System and the Common Language Specification

The Common Type System is the model that defines the rules the common language runtime follows when declaring, using, and managing types. The common type system establishes a framework that enables cross-language integration, type safety, and high-performance code execution. It is the raw material from which you can build class libraries.
The Common Language Specification (CLS) defines a set of programmatically verifiable rules that governs the interoperation of types authored in different programming languages. Targeting the CLS is an excellent way to ensure cross-language interoperation. Managed class library designers can use the CLS to guarantee that their APIs are callable from a wide range of programming languages. Note that although the CLS encourages good library design, it does not enforce it. You should follow two guiding principles with respect to the CLS when determining which features to include in your class library:
1.        Determine whether the feature facilitates the type of API           development appropriate to the managed space.
The CLS should be rich enough to provide the ability to write any managed library. However, if you provide multiple ways to perform the same task, you can confuse users of your class library about correct design and usage. For example, providing both safe and unsafe constructs forces users to decide which to use. Therefore, the CLS encourages the correct usage by offering only type-safe constructs.
2.      Determine whether it is difficult for a compiler to expose the      feature.
All programming languages will require some modification in order to target the runtime and the common type system. However, in order for developers to make a language CLS-compliant, they should not have to create a large amount of additional work. The goal of the CLS is to be as small as possible while offering a rich set of data types and features.

I hope it will helpful for .Net beginners.

The all above information collected from internet if any query please inform me.

1.        MSDN
2.      Wikipedia
